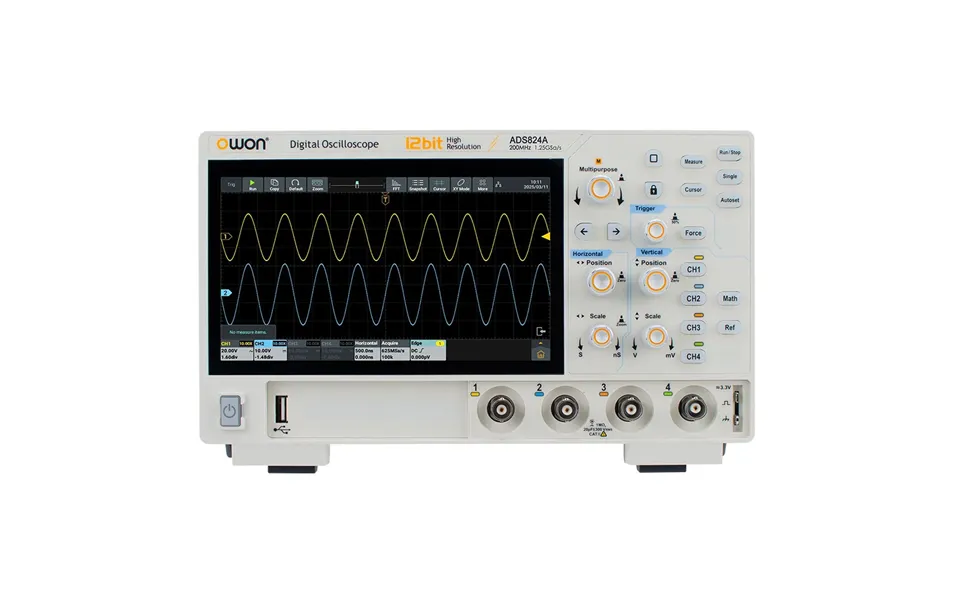

1111Microsoftinternetexplorer402documentnotspecified7 8 normal0specifications channel 4 max sample rate 1 25gsa s acquire modes sample peak high res average segmentation vertical resolution 12 bits max waveform capture rate 700 000 wfms s max memory depth 50m vertical sensitivity 500 v div 10v div record length 50m display 7 inch 1024x600 capacitive multi touch screen input impedance 1 m 2 paralleled with 20 pf 5 pf dimensions w x h x d 260mm x 160mm x 78mm type ads804a 70mhz bandwidth 3 db ads814a 100mhz bandwidth 3 db ads824a 200mhz bandwidth 3 db features 1 high resolution data capture equipped with 12 bit adc enhancing the precision of captured signals providing clear and detailed waveform viewing 2 rapid waveform acquisition achieves a maximum waveform capture rate of 700 000 wfms s allowing for swift and efficient data collection 3 versatile input options supports various triggering modes including edge video pulse slope runt windows and more accommodating diverse testing needs 4 extensive connectivity features hdm usb device usb host and lan interfaces for seamless data transfer and integration into your existing workflow 5 advanced measurement capabilities includes 43 auto measurements offering comprehensive tools for thorough waveform analysis and data accuracy package included 1 x digital oscilloscope host4 x probes1 x power cord eu plug 1 x power adapter1 x usb cable1 x manual
Brand: OWON
