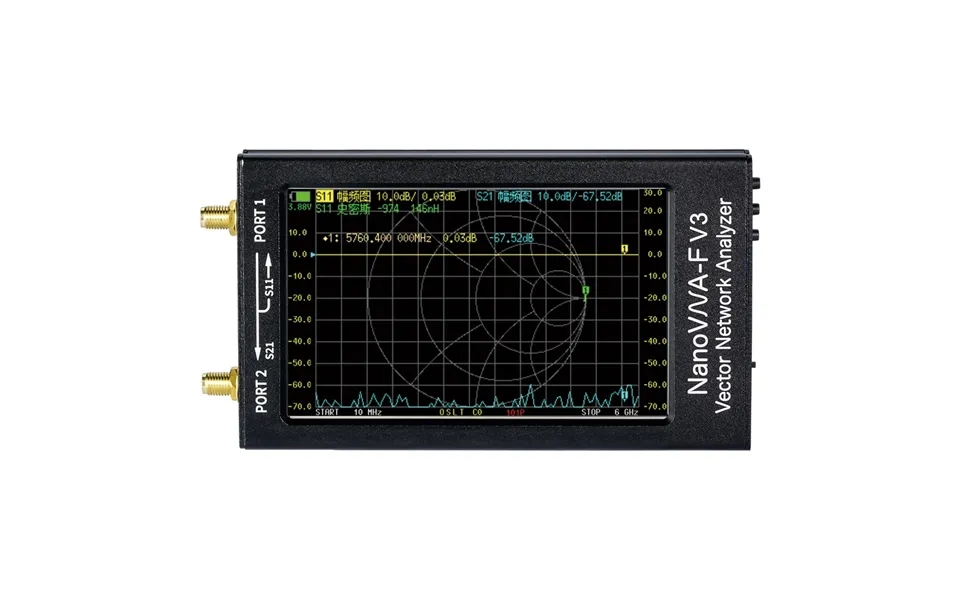

Nanovna-f V3 4.3 Inch Lcd 1m-6ghz Vector Network Analyzer - Shortwave Analyzer Mf Hf Vhf Uhf Talent Nanovna-f Antenna An

Features nanovna f v3 is a portable vector network analyzer vna with frequency range of 1mhz 6ghz it can be used for s11 and s21 measurements the s21 dynamic range of nanovna f v3 is 65 db while the s11 dynamic range is 50 db nanovna f v3 is suitable for antenna testing of mf hf vhf uhf shf bands such as shortwave antennas ism band antennas wifi antennas bluetooth antennas gps antennas etc it can also be used to measure filters amplifiers attenuators cables power dividers couplers duplexers and other rf components nanovna f v3 supports a variety of display formats log mag linear mag phase smith r jx smith r l c vswr polar group delay resistance reactance etc in addition nanovna f v3 supports tdr function which is useful for cable lengths measurement nanovna f v3 is designed with metal case which is durable and can effectively shield electromagnetic interference the dimension of nanovna f v3 is 125mmx75mmx20mm the rf interface of nanovna f v3 is sma connector witch can be used to connect duts directly with the optimally designed signal processing system the scan speed of nanovna f v3 is up to 200 points s and the maximum scanning points is up to 801 the screen of nanovna f v3 is a 4 3 inch high brightness ips with resistive panel which allows users to see the screen contents clearly in outdoor nanovna f v3 adopts a full touch screen design with 3 physical buttons users can quickly set frequency range scale tu Brand: MUSTOOL

Features nanovna f v3 is a portable vector network analyzer vna with frequency range of 1mhz 6ghz it can be used for s11 and s21...show more
