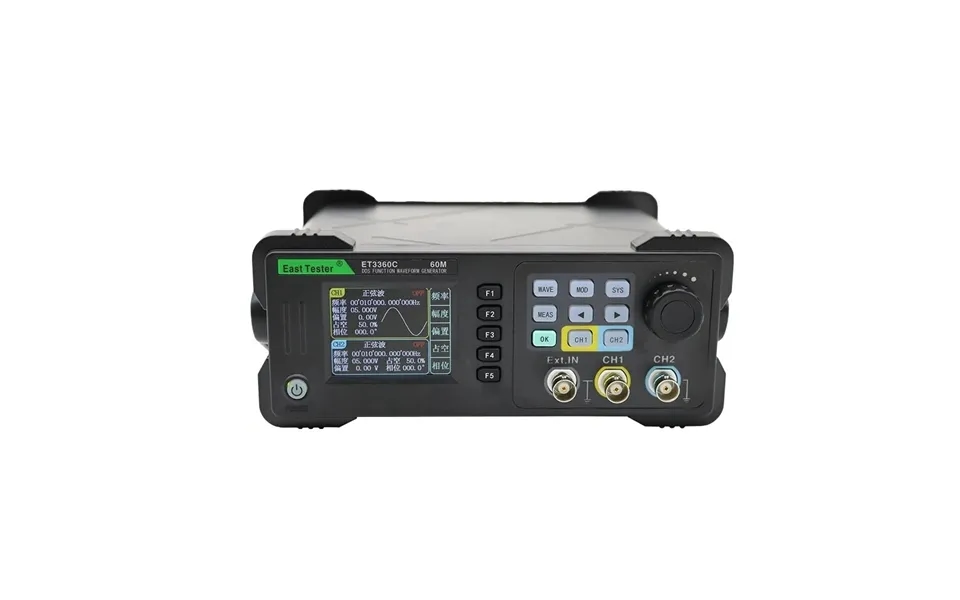

East Tester Dual Channel Function Arbitrary Waveform Generator 60mhz Frequency Meter Signal Source Et3320c Et3340c Et336

Features 2 4 inch 320x240 tft lcd with clear graphic interface chinese english menu available both channels are independent of each other and have phase synchronization function sampling rate 200msa s vertical resolution 13bit and storage depth 8k 5 basic waveforms and 32 arbitrary waveforms in built waveform storage support internal storage of 50 groups of user defined edited waveforms pulsewave output set in edge time internalam fm pmmodulation function external am fm pm modulation is optional internal external ask fsk psk modulation function dual channel output maximum output frequency 60m output of linear logarithmic sweep and burst pulse train waveforms with 100mhz high precision frequency meter and 32 bit counter standard usb device interface optional external analog modulation interface equipped with multifunctional arbitrary waveform editing software specification powerpower voltageac 110 240v 50 60hzpower consumer15wdisplaytype2 4 inch tft ledresolution320 240color16m colorconditiontemperature rangeoperation 10 40 non operation 10 60 cooling methodnatural coolinghumidity range 35 below 90 relative humidity 35 40 60 relative humidityinterfaceusb devicepacking included 1 x waveform generator1 x three core power cable2 x bnc coaxial cables1 x usb data cable1 x straight signal cable1 x instruction manual Brand: East Tester

Features 2 4 inch 320x240 tft lcd with clear graphic interface chinese english menu available both channels are independent of each other and have phase...show more
