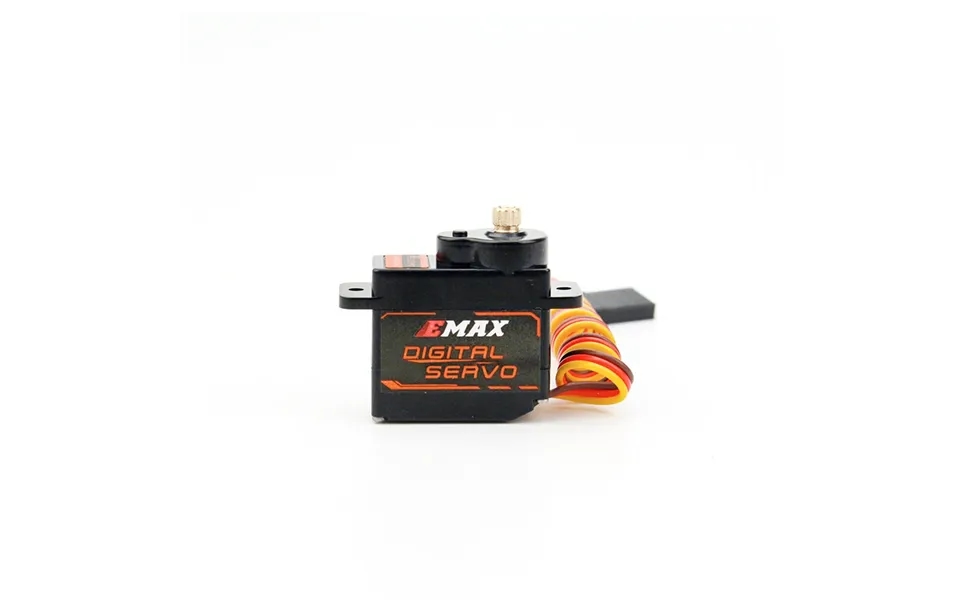

Emax Es3059md 9g Metal Gear Mini Digital Servo For Rc Robot Car Helicopter Airplane

Apply enciromental condition storage temperature range 20 c 65 coperating temperature range 10 c 55 coperating voltage range 4 8v 6velectrical specification operating speed at no load 0 13sec 60 4 8v 0 11sec 60 6v running curret at no load 250ma max 4 8v 300ma max 6v stall torque 1 8kg cm max 4 8v 2 1kg cm max 6v maximum current 0 8a max 4 8v 1 0a max 6v idle current 7 4ma 4 8v 7 4ma 6v mechanical specification overall dimensions as pictureweight 12 3 0 5gconnector wire gauge jrconnector wire length 250 8flower head 15tbearing nogear type 3 metal gear 3 plastic gearextreme angle 360 control specification control system pwmoperating travel 90 8 1000 2000 sec neutral positon 1500 secrotating direction counter clockwise pulse traveling 1500 to 1900 secpulse width range 500 2500 secmaximum travel 180 10 500 2500 sec package included 1x emax es3059md 9g metal gear mini digital servo Brand: Emax
