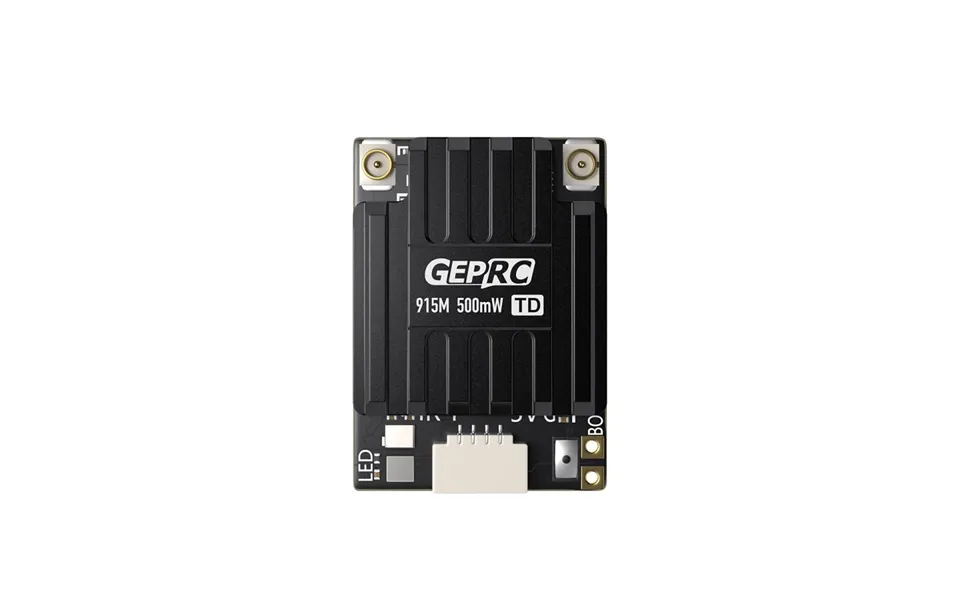

Geprc pa500 elrs dual 915mhz 868mhz dual antenna open source true diversity receiver for fpv racer dronesummary boost your signal reliability with geprc s next gen dual antenna true diversity system powered by the open source expresslrs project engineered for long range operation ultra low latency and a 200hz refresh rate the elrs dual 915m pa500 delivers premium performance at an unbeatable price its dual antennas are strategically positioned for broader coverage and a more stable connection compared to single antenna systems the tcxo crystal oscillator ensures stable performance even in extreme temperatures by preventing frequency shift packed with power the integrated high power pa chip delivers up to 500mw of telemetry the cnc machined aluminum alloy shell optimizes cooling for smooth operation while firmware upgrades are effortless with the built in wifi antenna plus installation is quick and easy with the sh1 0 connector specifications model geprc elrs dual 915m pa500 diversity receiverdimension 18x25x5 5mmweight 3 2g rx only chips esp32 pico d4 sx1276 dual crystal oscillator tcxofrequency band 915mhz fcc 868mhz eurefresh rate 25hz 200hzoperating voltage 5vantenna connector ipex1tlm power 500mwfirmware geprc true diversity 900mhz pa500 rxfeature 1 compact size of 18x25x5 5mm2 weighs only 3 2g3 wifi firmware upgrade4 elrs open source project long range remote control5 maximum refresh rate of 200hz6 uses a temperature compensated crystal o
Brand: GEPRC
