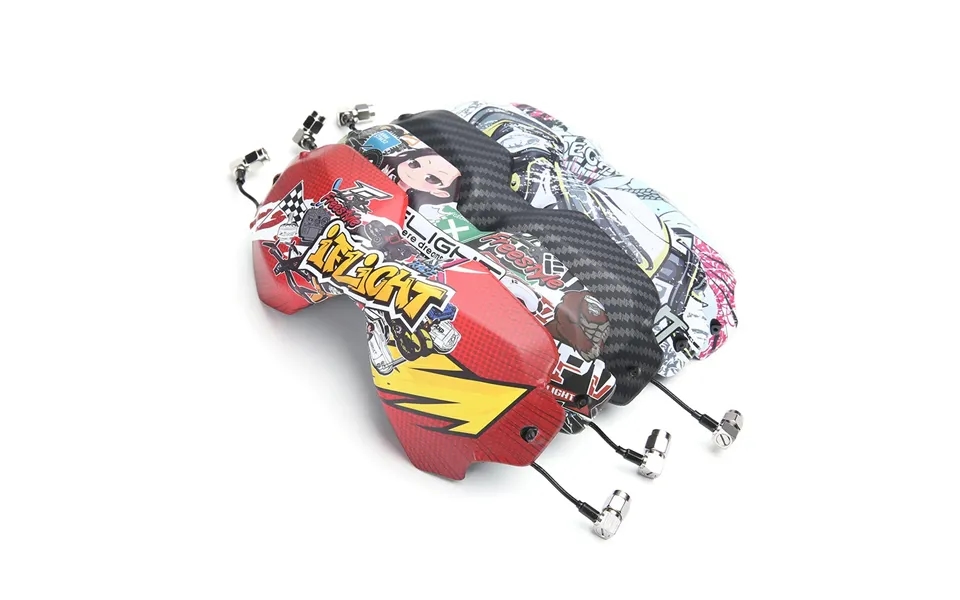

Iflight Crystal Hd Patch 5.8ghz 9dbi Directional Circular Polarized High Gain Flat Panel Fpv Antenna Lhcp With Casing Su

Let s welcome our new iflight crystal hd 5 8ghz directional antenna specially designed for the dji digital fpv goggles to replace the stock front plate with our iflight engineered antenna array no this is not another patch antenna two carefully designed and highly sensitive lhcp high gain directional antennas give you a better reception at long range as well as better penetration through trees bandos or other difficult terrains low profile design to decrease your pack size to a minimum and high quality rg178 cables for best durability we were able to achieve a super wide antenna beam width through an angle of 30 degrees between the two antennas horizontal beam of 105 and vertical beam of 75 degrees at 9dbi gain dropping of slowly the further you get to the side low loss with a 93 antenna efficiency and a axial ratio of 1 6 through the whole band if that s not enough we also gave you the option to either mount your antennas at the bottom or top pair of the goggle rp sma connectors multiple designs available get them as long they last description brand iflightfrequency 5 8ghzbandwidth 5600 5900 mhzgain 9 dbiaxial ratio 1 6impendance 50 radiation efficiency 93 beam width 105 h 75 v polarization lhcp rhcp left right hand circularly polarizedcable rg178connector rp sma fits dji goggles directly not to be used on standard sma dimensions 16mm x 7mm x 3mmweight 52 1gfeatures 3 designs available black carbon blue sticker design red yellow c Brand: iFlight

Let s welcome our new iflight crystal hd 5 8ghz directional antenna specially designed for the dji digital fpv goggles to replace the stock front...show more
