Geprc Triple Feed Patch Array 5.8ghz High Gain Antenna For Long Range Fpv Goggles Rc Drone

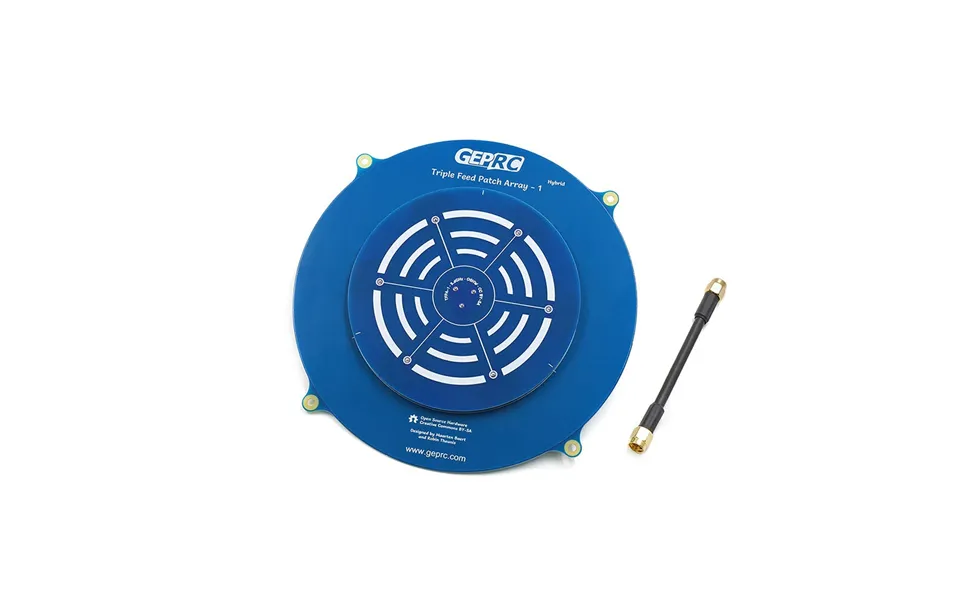

Summary the triple feed patch array antenna is a directional circularly polarized antenna based on the original triple feed patch antenna it uses an array of seven coupled patches resulting in significantly higher gain since the beamwidth is rather narrow this antenna is not recommended for general fpv but for long range flight it performs very well feature 1 good radiation efficiency most fr4 based patches are very efficient because fr4 is very lossy at 5 8 ghz also most array antennas have higher losses in the feed network the design uses coupling patches to keep the feed network simple and reduce these losses 2 very good axial ratio not only directly perpendicular to the patch but also eccentric 3 high gain but not higher than theoretical gain for an array with 7 elements this is because maximizing gain results in high side lobes and poor axial ratio 4 very low side lobes almost all the energy is concentrated on the main lobe this increases the width of the main lobe but adds some gain includes 1 x triple feed patch array antenna1 xadapter cable sma or rp sma Brand: GEPRC
