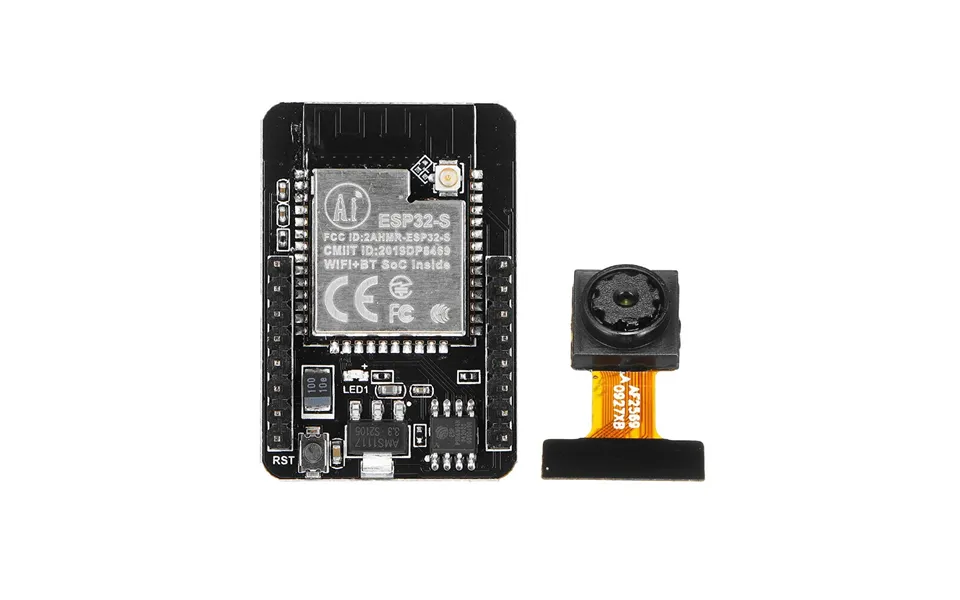

Geekcreit Esp32-cam Wifi Bluetooth Camera Module Development Board Esp32 With Camera Module Ov2640

For more files please click here filedescription 1 esp32 cam is a wifi bluetooth dual mode development board that uses pcb on board antennas and cores based on esp32 chips it can work independently as a minimum system 2 esp integrates wifi traditional bluetooth and ble beacon with 2 high performance 32 bit lx6 cpus 7 stage pipeline architecture main frequency adjustment range 80mhz to 240mhz on chip sensor hall sensor temperature sensor etc 3 fully compliant with wifi 802 11b g n e i and bluetooth 4 2 standards it can be used as a master mode to build an independent network controller or as a slave to other host mcus to add networking capabilities to existing devices 4 esp32 cam can be widely used in various iot applications it is suitable for home smart devices industrial wireless control wireless monitoring qr wireless identification wireless positioning system signals and other iot applications it is an ideal solution for iot applications features ultra small 802 11b g n wi fi bt ble soc module low power dual core 32 bit cpu for application processors up to 240mhz up to 600 dmips built in 520 kb sram external 4m psram supports interfaces such as uart spi i2c pwm adc dac support ov2640 and ov7670 cameras with built in flash support for images wifi upload support tf card support multiple sleep modes embedded lwip and freertos support sta ap sta ap working mode support smart config airkiss one click distribution network support for Brand: Geekcreit

For more files please click here filedescription 1 esp32 cam is a wifi bluetooth dual mode development board that uses pcb on board antennas and...show more
