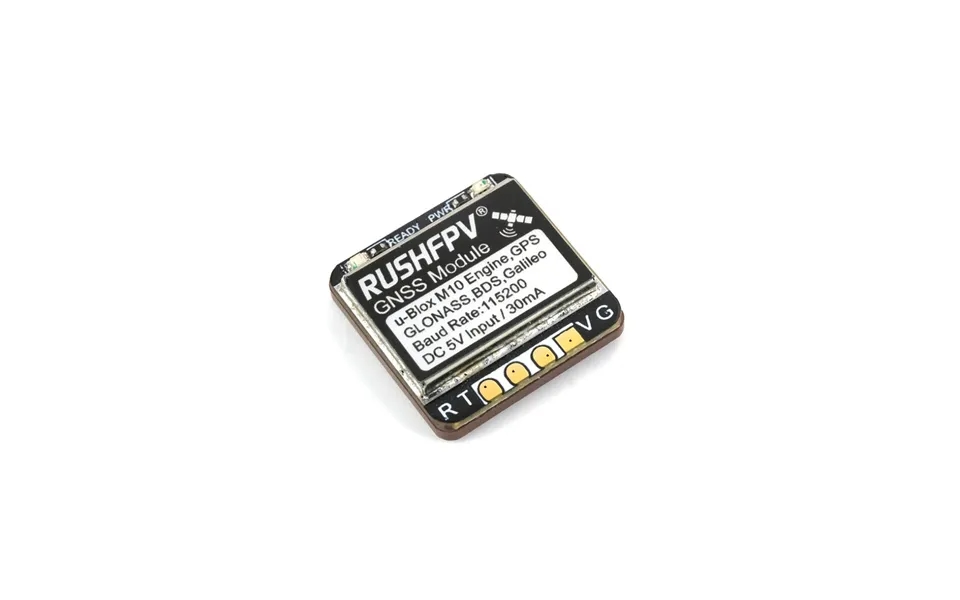

Rushfpv Gnss Mini M10 Gps Module 10hzrate Built-in Ceramic Antenna For Rc Airplane Fpv Freestyle Drones Diy Parts

Features a compact navigation module designed for small fpv carriers the new ublox m10 engine supports gps bds glonass and galileo system navigation and can connect three of them at the same time with a refresh rate of up to 10hz built in backup battery and memory support fast hot start the antenna has an anti fouling coating and the circuit part is sealed reliable and durable technical specification receive frequency band gps l1 glonass l1 bds b1 galileo e1 sbas l1 qzss l1 receiving channel 72ch receiving sensitivity 162dbm output protocol ublox nmea baud rate 115200dps power input 5v 30maoutput refresh rate 1hz 10hz speed accuracy 0 05m s positioning accuracy 2d acc 1 5m maximum working height 50000m maximum moving speed 500m s size 18x18x4 8mm weight 4 2gprecautions please keep the top of the ceramic antenna unobstructed and avoid close to metal and carbon fiber for the best reception please use the bracket to install the gnss antenna in a clear place and keep it as far away as possible from the vtx and r c receiver antenna when connecting to fc please connect the rx of the gnss module to fc tx and the tx of the module to fc rx the antenna is fragile please do not hit or drop it the engraving marks on the ceramic antenna are produced by manually fine tuning the center frequency to improve the performance of the antenna and are not product defects package list 1x rushfpv gnss mini gps module Brand: RUSHFPV
