Pluto 70mhz 6ghz Ad9363 Sdr Radio Receiver Transmitter 2xrx 2xtx Compatible With Adi Adalm-pluto Pluto

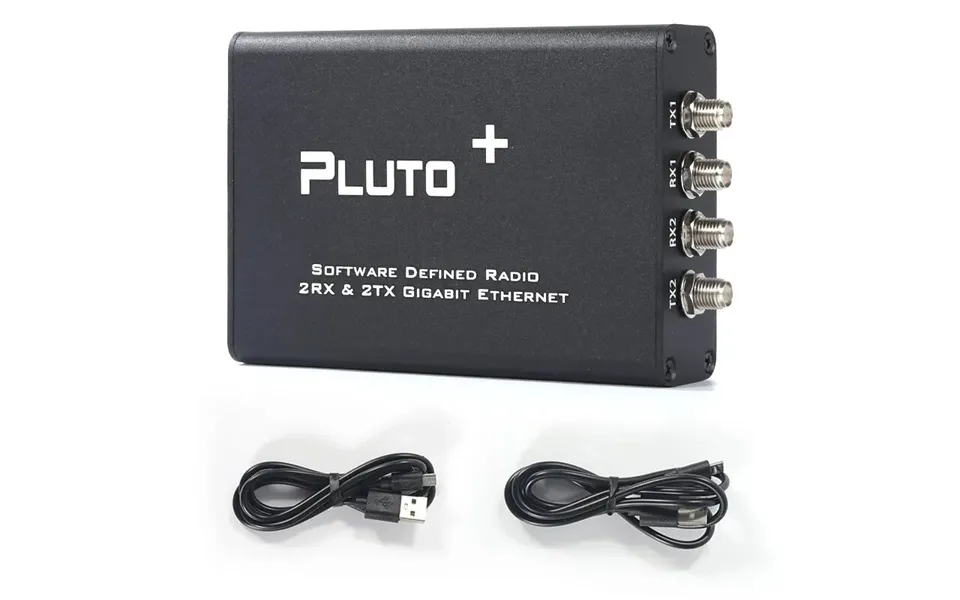

Use tutorial and software download address https drive google com file d 1onjotojzan82d3yuhzg1ykfexnfkkyba viewhttps github com plutoplus plutoplus releasesdescription pluto is a software defined radio platform that supports 2tx 2rx supports gigabit ethernet and micro sd card the design draws on the well known adi adalm pluto and improves its shortcomings features 1 adc dac ad9363 can hack to ad9361 or ad9364 2 2 transmit 2 receive channel3 rf range 70mhz 6ghz4 ref clock vctcxo 40mhz0 5ppm5 soc zynq7010 fpga 28k6 ram 512m7 flash 32m8 usb 2 0support otg9 ethernet 1000mb10 micro sd can use to boot11 dc in 5v 0 5v 2amicrousbpackage include 1 x pluto software radio2 x cableinterface please note that all io levels are 1 8v 3 1 when using the official adi plutosdr firmware please connect to urst mi052 3 2 when using pluto firmware and need to support ethernet please connect urst mio463 3 when using sd card to boot please connect sd h to 1v83 4 when using jtag to debug please connect jtag to gnd3 5 please connect exclk to gnd when using external reference clock inputptt key portptt drives optocouplers through gpio0 mi00 which requires an external relay or control circuit dfu keyat any time you can press the dfu button and power on pluto again to enter the dfu mode but you need to connect the urst jumper to mi052ref clk input ipexyou can connect a cable to input an external high precision reference clock for ad9363 through the ipex interfa Brand: AISANRAY
