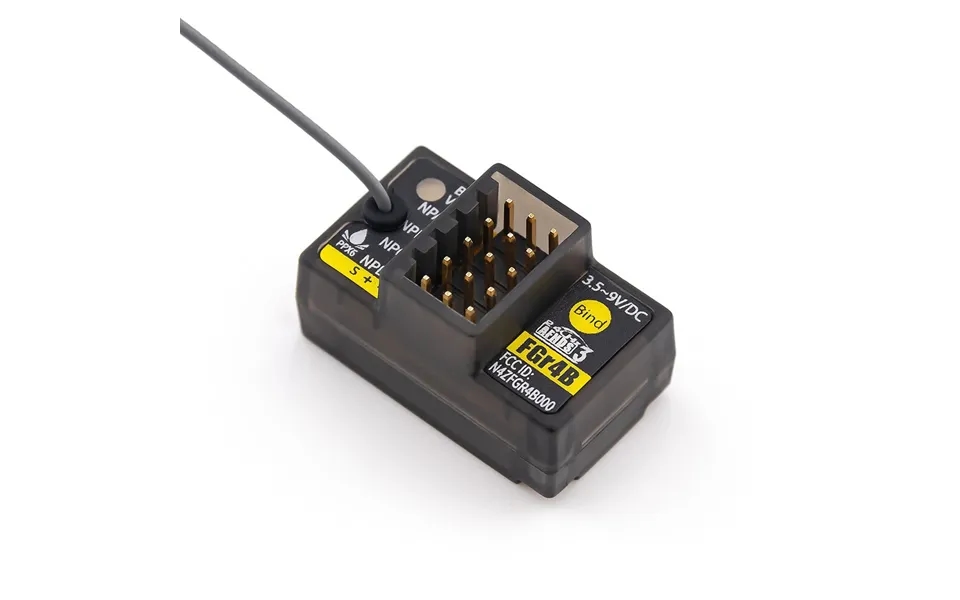

Flysky Fgr4b 2.4ghz 4ch Afhds 3 Micro Mini Rc Receiver Pwm Ppm I-bus S

Flysky fgr4b 2 4ghz 4ch afhds 3 micro mini rc receiver pwm ppm i bus s bus i bus2 output for pl18 nb4 nb4 lite nb4 transmitter rc car boatoverview the fgr4b receiver adopts flysky s third generation automatic frequency hopping digital system afhds 3 it uses a single antenna bidirectional transmission system and is uniquely designed to install and output pwm ppm i bus s bus i bus2 in signals it supports all afhds3 transmitters description brand flyskymodel fgr4bpwm channels 4rf 2 4ghz ism2 4g protocol afhds 3antenna single antennainput power 3 5 9vdata output pwm ppm i bus s bus i bus2temperature range 10â 60â humidity limit 20 95 online update yesdimensions 17 29 16 6mm weight 6 4gcolour blackposition frontmodel type car boat ectcertification ce fcc id n4zfgr4b000adaptive transmitter all transmitters supporting afhds3 pl18 nb4 nb4 lite etc binding press and hold the receiver bind button 5 while powering on the receiver release the bind button after receiver is powered on or powering on the receiver first press and hold the bind button 3 seconds the led 7 on the receiver will flash rapidly put the transmitter into bind mode the binding process is complete when the led on the receiver stops flashing and is on continuously if a transmitter that has had its radio frequency rf standard set to afhds3 1 way please refer to your transmitter user manual enters bind mode the receiver led will instead flash slowly exit bind mode on the Brand: FlySky

Flysky fgr4b 2 4ghz 4ch afhds 3 micro mini rc receiver pwm ppm i bus s bus i bus2 output for pl18 nb4 nb4 lite...show more
