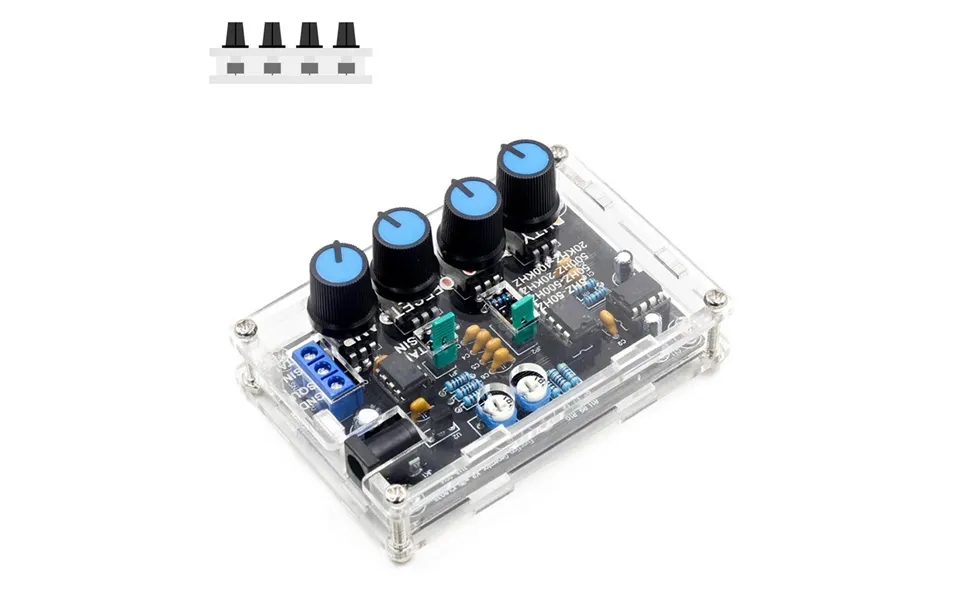

Fnirsi Signal Generator Diy Kit With Icl8038 High-speed Op Amp Adjustable Frequency 5hz-400khz Duty Cycle 2-95% High Low

This signal generator diy kit is professional product to generate sine triangle square forward and reverse sawtooth wave it s a diy kit for you to weld and install features uses icl8038 and high speed op amp higher accuracy can output sine triangle square forward and reverse sawtooth waveforms frequency range 5hz 400khz duty cycle range 2 95 adjustable supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion adjustable frequency and amplitude frequency adjustment features coarse tuning and fine tuning all are through hole components easy to install specifications material fr4 acrylicsupply voltage 12v 15vfrequency range 5hz 400khz adjustable duty cycle range 2 95 adjustable low distortion sine wave 1 low temperature drift 50ppm coutput triangular wave linearity 0 1 dc bias range 7 5v 7 5voutput amplitude range 0 1v 11vpp operating voltage 12v board size approx 7 8 5cm 3 07 1 97infinished product size approx 8 7 6 1 7cm 3 43 2 36 0 67inproduct weight 81g 2 86ozpackage size approx 11 7 3cm 4 33 2 76 1 18inpackage weight 95g 3 35oz note the testing picture is just for reference please in kind prevail package included 1 x signal generator diy kit1 x user manual english Brand: WESTBIG
