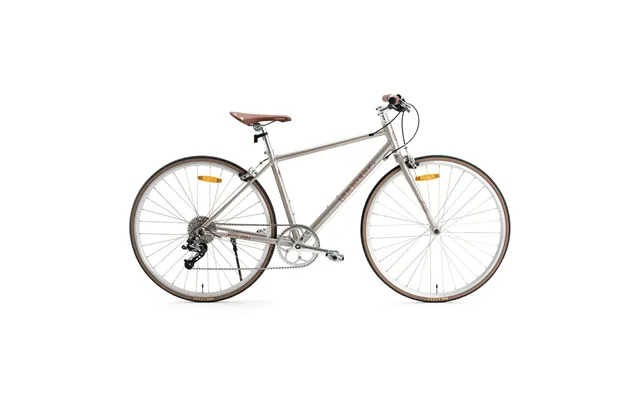

Ats Classic 700c Road Bike - Coffee Xs

Item description frame rockbros aluminum alloy frame front fork rockbros steel rigid fork handlebar aluminum alloy drop bar, 31.8 × 530 Mm stem forged aluminum alloy stem, 31.8 × 28.6 Mm saddle rockbros brown saddle seatpost aluminum alloy seatpost, 27.2 × 300 Mm bike weight approx. 10.10 Kg size m shifters shuntai sl6900-m10-r10, 10-speed rear derailleur shuntai rd8500-m10-gs, 10-speed cassette sunrace 10-speed cassette, 11 28t brake system single-pivot c-brake crankset aluminum alloy square taper crankset, 170 mm × 48t rims aluminum alloy rims wheelset aluminum alloy spoked wheels hubs aluminum alloy quick release bearing hubs spokes 14g medium carbon steel spokes with brass nipples tires innova 700c × 28c valve type presta valve fv , 32 mm geometry specifications unit: mm geometry xs s m l seat tube mm 420 450 480 510 top tube mm 550 565 579 600 chainstay mm 445 445 445 445 front center mm 609 624 628 645 seat tube angle 73.5 73.5 73.0 73.0 Head tube angle 70.5 70.5 71.0 71.5 Wheelbase mm 1045 1060 1064 1086 bb drop mm 68 68 68 68 head tube mm 120 130 140 160 fork offset mm 45 45 45 45 fork length mm 387 387 387 387 trail mm 390 402 407 422 stack mm 541 550 562 583 standover height mm 675 701 728 756
