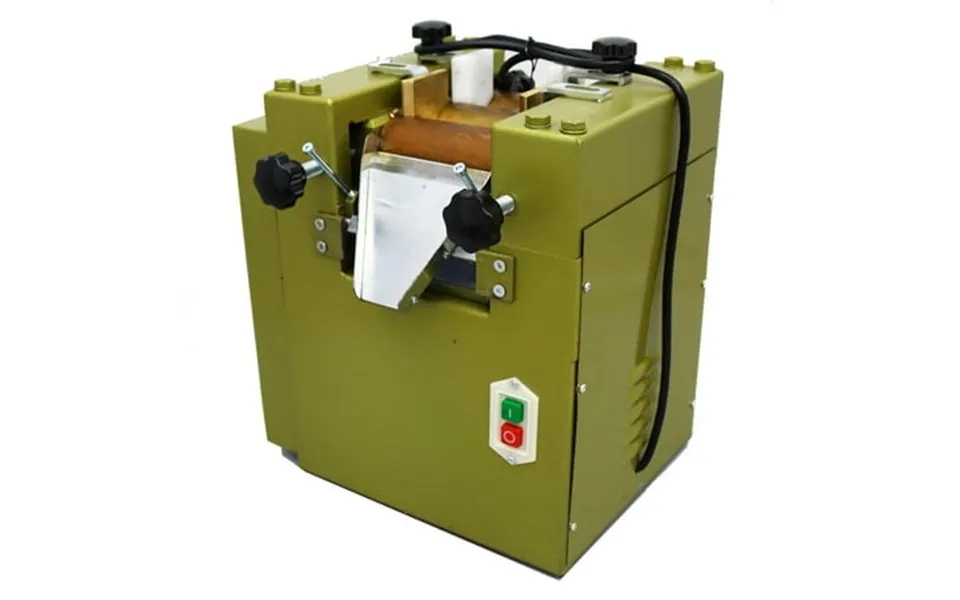

Techtongda Three Rolls Grinding Mill Grinder Roller Machine Pigment Grinding For Lab Applications Crushing Dispersion 22

Description: the machine is mainly used to grind various paint ink paint pigments paints food cosmetics and other paste materials. The machine has become the main equipment of abrasive material. Three rollers of the machine with chilled alloy casting thickness of chilled alloy layer is 15 25 Mm surface hardness is hs68 75. After grinding for once or several times finally achieve the required fineness about 3 to 18 microns in general to fineness determination . Three-roll mill consists of seat the guide cover the roll shaft housing feeding copper knife the riving knife plate the cooling means and gears pulleys etc. Parameter: voltage 220v motor power 0.75Kw roller diameter :65mm 2.55Inch roller working face length: 125mm 4.92Inch roller speed:32 slow 89 medium 250 fast roller speed ratio :1:2.8:7.8 Model of motor:ys7144 power of motor: 0.75Kw speed of motor: 1400rpm size: 420x 400x440mm 16.53X15.74X17.32Inch note: 1 before work: keep the roller surface clean lubrication part has enough lube 2 at work: 1 after start the machine adjust fast slow roll to a certain position soap and lead the distance of fast slow roll is 0.5 Mm or so .According to your need to make a precise regulation after add materials.Generally the colorific deepness is consistent after the roller adjust well.If the middle colour is light but two ends colour are thick you can adjust the speed of the cooling water. 2 Avoid grinding with corrosive materials. 3 Charging copper knife can t press too hard.Add ...
