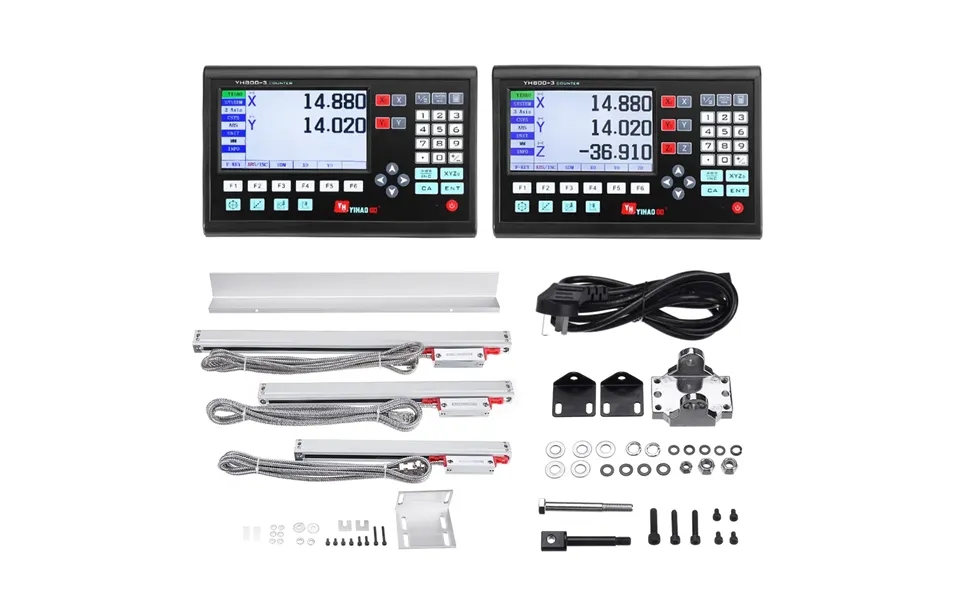

Yihaogd Yh Lcd 2 3 Axis Grating Cnc Milling Digital Readout Display Dro Ka300 5 M Ttl 70-970mm Electronic Linear Scale

Description yihaogd yh lcd 2 3 axis grating cnc milling digital readout display dro ka300 ttl 70 970mm electronic linear scale encoders lathe toolyihaogd yh lcd digital readout can match all type of yihaogd linear scales both ka300 and ye type big lcd screen better display than digital tube convenient and practical specification large lcd dro digital readout display system parameter model 2 axis 3 axisvoltage range ac 100v 240v 50hz 60hzdigital readout display acceptable signal ttlplug db9acceptable resolution 10 m 5 m 2 m 1 m 0 5 m size the optional length is measuring effective lengthtotal length measuring effective length 106mmdro digital readout display system functions 1 zero clearing2 reset3 mm inch mode4 abs inc coordinate conversion5 200sets sub datum6 power off memory 7 center of 1 28 liner error compensation9 sleepping mode10 clear 200 sets sdm datum 11 abs inc mode12 calculator13 drilling of circumference14 drilling of oblique line15 machining of inclined plane16 machining of circular arc17 lathe function match 18 rectangular lumen gradual processing19 digital filtering20 vibration filtering21 lathe functionka300 5u ttl linear scals linear encoder linear sensor linear ruler parameters1 travel measuring length 0 970mm2 total overall length travel length 106mm 0 1076mm 3 plug db94 resolution 0 005mm 5 5 input voltage 5v6 grating pitch 0 02mm 50lp min 7 cable length 3 meter8 protection class ip549 signal ttlthe signal of 5
