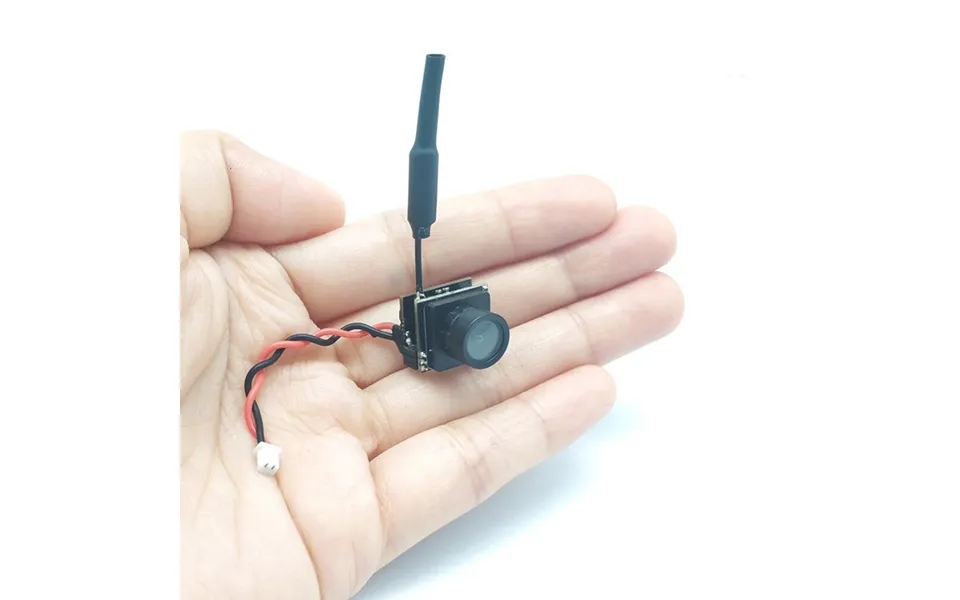

Ewrf 701u 5.8ghz 48ch 25mw 600tvl F1.4mm 120 Degree Wide Angle 3 In 1 Aio Video Transmitter Fpv Camera Pal Vtxfor Fpv

User guide 701uafter powering up the redblue leds will signal the fllowing two items of vtx in tum channel and band the flashing times of the red and blue leds indicate the item and the value respectively after that the leds indicate the working modes thered blue led areon step 1 press and hold the button until the red led flash 1 time which means the item of channel selecting then press he buttoncan select the channels blueledflashing times corresponds to the channel1 8 step 2 press and hold the button again the red led will flash 2 times which means the item of band selecting then press the button can select the band blue led flashing times corresponds to the band a to f step 3 press and hold the button again the red led will flash 3 times which means the item of image flip selecting then press the button can select the vertical picture reversal step 4 press and hold the button to save and the etx this is required description item name fpv cameramodel 701utype copper tube antennaworking current 220masize 13 5x15 9x17 2mmworking voltag 5v 2 5 5 5v adjustment methoud use the buttonpower 25mwchannel 48chcamera 120 wide angle cameravideo palresolution 600tvlimage flipssupportfocal length f 1 4mmweight 3 6gpackage included 1x cameranote 1 make sure that there is enough space for airflow when insaling the module on the drone once the overheating protection starts to reduce the power even to shut down at the worst 2 please install the a
