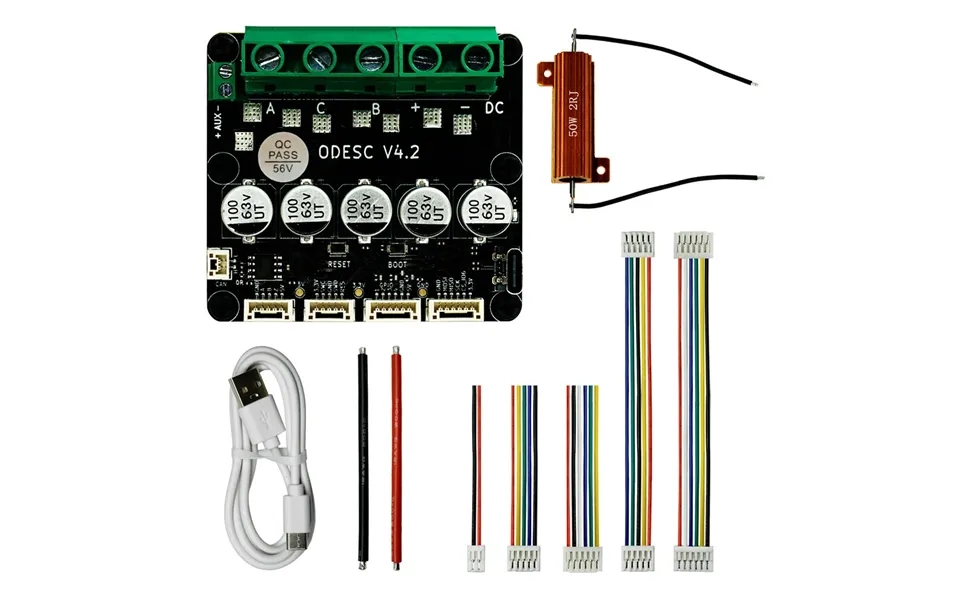

Sequre Odesc V4.2 Single Drive High Current High Precision Brushless Servo Motor Controller Based On Odrive3

Description odesc v4 2 24v 56v high performance brushless drive is based on the open source project odrive for hardware optimization and enhancement with stable performance and matching odrive original firmware the supporting usb connection to the pc terminal can realize motor debugging and complex multi directional axis control and can realize foc control for most brushless motors on the market with the use of the encoder it can also realize any torque speed loop position loop current loop and position control based on trajectory planning etc it can be widely used in flexible robot joints robotic arms 3d printing camera universal joints pan rail cnc milling machine ship models car models and other diy industrial and automation fields specification hardware versionodesc v4 2drive motorbrushless dc motor bldc braking methodpower resistors battery recyclingmicroprocessorstm32f405rgt6working voltage8 24v 8 56vmaximum current120acontinuous current70amotion modespeed position current torque trajectory and other control modesencoder typeincremental encoder ab abi absolute value encoder spi hall sensor hall amt102 amt103 tlb5012 as5047p etc communication interfaceusb pwm uart can analog input stepdirection gpio ascii etc over current heat dissipationpcb integrated high current open skylight design adopts thick copper layer and special process of immersion gold and cnc custom made aluminum metal heat sink which greatly enhances co
