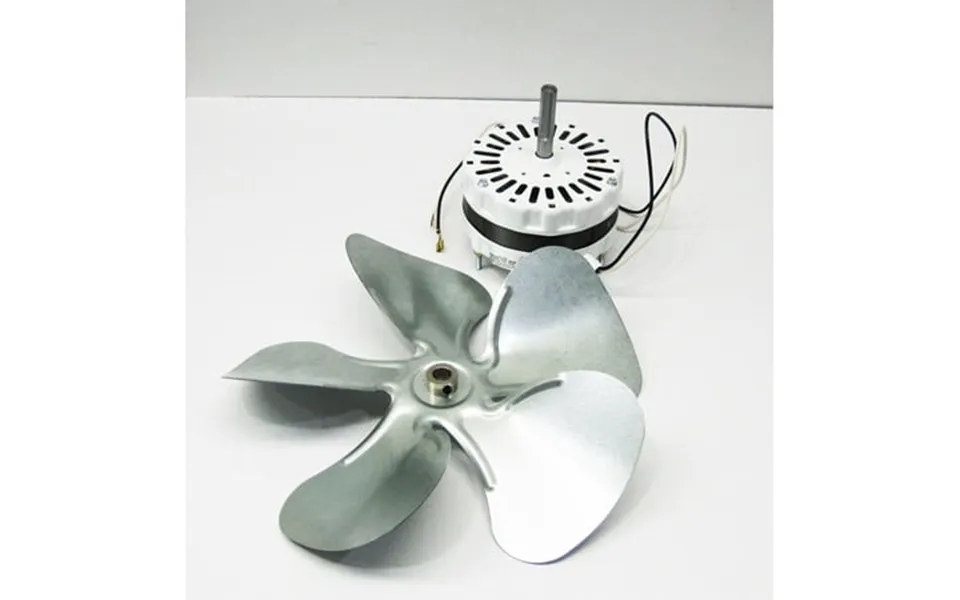

Attic Fan Ventilator Motor And Blade Fits 1050 And 1200 Cfm

Motor specifications: 5 diameter shaft diameter is 1 2 x 2 1 2 long 115 volts 2 wire hook up single speed 1050 rpm 4.3 Amps Safe amp range within which the motor can operate in the application is 3.3 4.75 1 10Th hp rotation is clockwise viewing shaft end mounts either as a belly band strap around the motor or with 3 studs out of the back of the motor spaced 4 apart triangularly replacement for numbers f0516b3235 f0516b2514 99080267 and 97009317. The metal fan blade specifications: 12 diameter 5 blade 32 degree pitch 1 2 bore has a set screw clockwise viewing hub side metal Brand: Bozkir Size: [12 Diameter]

Motor specifications: 5 diameter shaft diameter is 1 2 x 2 1 2 long 115 volts 2 wire hook up single speed 1050 rpm 4.3...show more
