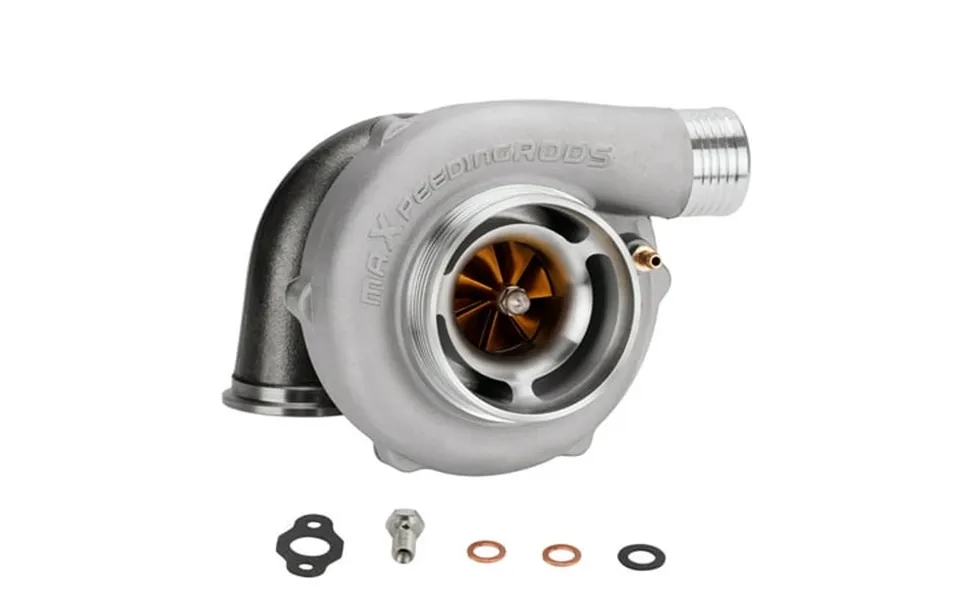

Maxpeedingrods V-band Turbo Charger Gt3071 Compressor A R 0.63 Stainless Steel Anti Surge

Application: universal for 2.5-3.0L engines. Specification: exhaust inlet flange: v-band exhaust outlet flange: v-band turbine trim: 80.7 Turbine a r: 0.82 Turbine inducer diameter: 61mm turbine exducer diameter: 54.8Mm compressor trim: 52.8 Compressor a r: 0.63 Compressor inducer diameter: 51.6Mm compressor exducer diameter: 71 mm oil feed inlet: m10*16 7-24 oil drian outlet: m8*1.25 37.8 Water inlet outlet: m14* 1.5 Pressure control: handle up to 3.0 Bar 43.5Psi bearing type: floating bearing cooling type: water oil cooling thrust bearing:270 degree horsepower:up to 500hp turbo type:individual universal fitment:yes finish:matte feature: *product material 1. Turbine housing stainless steel turbine housing Temperature resistant up to 1020 2. Steel turbine wheel k419 alloy High oxidation stability and resistance up to 1000 3. Compressor housing zl104 aluminum with lightweight 4. Billet compressor wheel: forged cnc full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response *product performance 1. Racing performance turbocharger 2. Excellent high temperature resistance high efficiency and durability 3. Rich experience in turbo production and own factory 4. High-speed oil seal ring and precision clearance * technology advantage: 1. 100% Balancing test by turbotechnics vsr3 2. G3-min-flow vnt turbo testing 3. Advanced actuator tester programmer note: * replace repair or reconnect air cleaner element per manufacturer s manual ... Brand: Maxpeedingrods Size: [26CM*25CM*23CM]

Application: universal for 2.5-3.0L engines. Specification: exhaust inlet flange: v-band exhaust outlet flange: v-band turbine trim: 80.7 Turbine a r: 0.82 Turbine inducer diameter: 61mm...show more
