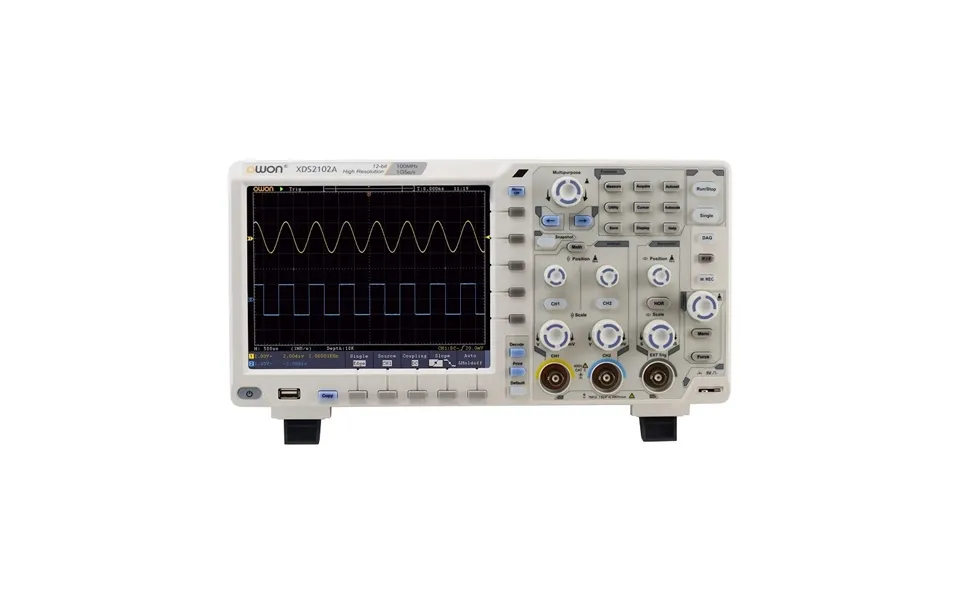

Owon Xds2102a Digital Oscilloscope 12 Bits Vertical Resolution 100mhz 1gs S 8 Inch Lcd Display 2ch High Resolution Digit

Features 12 bit high resolution adc restoring the waveform detail fully20m record length and 55 000 wfms s waveform refresh ratelow background noise vertical sensitivity in 1 mv div 10 v divmulti trigger and bus decoding functionscpi and labview supportedultra thin body design less space accommodationmulti interface integration usb host usb device usb port for pictbridge lan aux and morevga port better solution for video expansion and teaching demonstration8 inch 800 x 600 high resolution lcdspecifications modelxds2102abandwidth100mhzsample rate1gs s 8 bits 500ms s 12 bits vertical resolution a d 12 bitsrecord length20mwaveform refresh rate55 000 wfms shorizontal scale s div 2ns div 1000s div step by 1 2 5rise time at input typical 3 5nschannel2 1 external display8 color lcd 800 x 600 pixelsinput impedance1m 2 in parallel with 15pf 5pfchannel isolation50hz 100 1 10mhz 40 1max input voltage1m 300vrmsdc accuracyaverage 16 3 reading 0 05 div for vprobe attenuation factor0 001x 1000x step by 1 2 5lf respond ac 3db 10hz at input ac coupling 3db sample rate relay time accuracy 1 ppm typ ta 25 interpolationsin x xinterval t accuracy full bandwidth single 1 interval time 1ppm x reading 0 6ns average16 1 interval time 1ppm x reading 0 4ns input couplingdc ac and gndvertical sensitivity1mv div 10v div at input trigger typeedge video pulse slope runt windows timeout nth e Brand: DANIU
