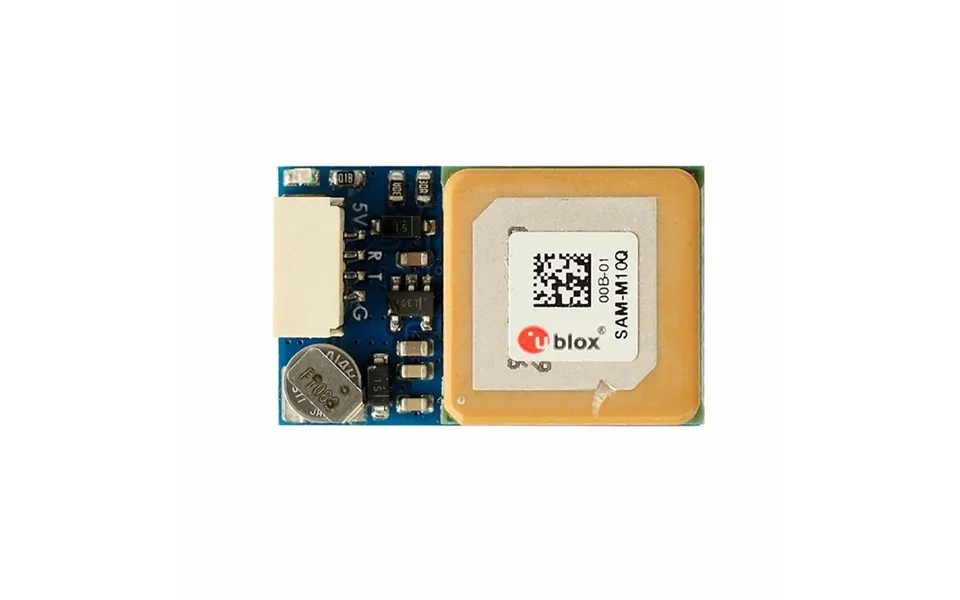

Matek Systems Gnss Sam-m10q Ublox Gps 4 9v Patch Antenna 15*15*4mm For Fpv Racing Drone Long Range Rc Airplane

Overview sam m10q uses multi constellation gnss module powered by u blox sam m10q 00b the sam m10q features the u blox m10 standard precision gnss platform and provides exceptional sensitivity and acquisition time for all l1 gnss signals sam m10q supports concurrent reception of four gnss gps glonass galileo and beidou the high number of visible satellites enables the receiver to select the best signals this maximizes the position availability in particular under challenging conditions such as in deep urban canyons u blox super s super signal technology offers great rf sensitivity and can improve the dynamic position accuracy in non line of sight scenarios the high gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size the omnidirectional antenna radiation pattern increases flexibility for device installation more details about the sam m10q pls check out u blox sam m10q page specifications gnss u blox sam m10q 00b gps glonass galileo and beidou no magnetic compass built inpatch antenna 15 15 4mminput voltage range 4 9v 5v pad pin power consumption 10mauart baudrate 9600 defaultoperating temperatures 20 80 cuart tx rx interface for gnss sam m10q 00bjst gh 4p connector sm04b ghs tb 1 27mm pitchgnss pps led green solid on after powering on blinking 1hz when gnss get 3d fix protocol ubx u blox 5hz gps gal bds b1c glo or nmea 1hzsize 26mm 16mm 8mmweight 7 5gsam m10q step click herepackage includes Brand: Matek
